Head-up display for Fiat Ducato, Peugeot Boxer and Citroen Jumper, also available with the optional tacho-top for easy installation.

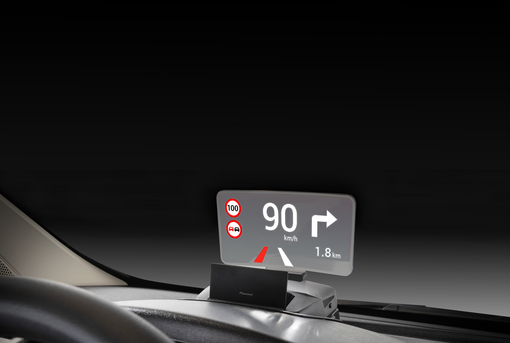

Pioneer's SDA HU100 Head-up display allows you to view driving information safely and easily whilst keeping your eyes on the road.

The SDA-HU100 Head-up display can display the vehicle speed, whilst also including Advanced Driver Assistance System (ADAS)* if these safety features are installed from new by the vehicle manufacturer;

Traffic Sign Recognition.

Lane Assistant.

*Advanced Driver Assistance System (ADAS). Features and functionality is dependant on the vehicle manufacturer specification.


Pioneer's SDA-HU100 allows you to adjust the brightness and the viewing angle easily. You can fold down the display if you are using a fold-down bed.


The Pioneer SDA-HU100** can display navigation instructions and comes in different versions depending on your vehicle. Some versions can include the tacho-top that offers easy installation by replacing the original instrument cover. Please consult your local authorised Pioneer Navigation Receiver or Campervan Dealer here to find out which model is compatible with your vehicle and your head unit receiver.


**NOTE: Only SDA-HU100 using serial number ALUIxxxxxxEU and manufactured from December 2021, running firmware version 1.8 or newer is compatible with the Pioneer SPH-EVO950DAB and it's variant models.


Pioneer's SDA-HU100 Head-up display is compatible with the below vehicles;

Fiat Ducato: Type: X290 | Model Year Starting From 2014.

Fiat Ducato: Model 8 & 9; Year Starting From 2021.

Peugeot Boxer: Type: X290 | Model Year Starting From 2014.

Citroen Jumper: Type: X290 | Model Year Starting From 2014.


View all specifications

Full specifications

Main Features

Screen 1.24" LCD
Installation Type By swapping Tacho-Top
Accessories Included:
Quick Start Guide

Tacho-top*** (Instrument cover)
***NOTE: Please consult your local authorised Pioneer Navigation Receiver or Campervan Dealer here to confirm the correct version for your vehicle.
Dimensions (W x H x D) Without tacho top: 167 mm x 131.06 mm x 130.6 mm
Weight Without tacho top: 350g
Projection Size Range 10.5"
Resolution 336 x 168 pixles
Power Adaptor Input voltage: 12V (9V to 16V), negative groundAverage maximum current consumption of 0.18A at 12V at the highest possible brightness

Head-Up Display

Brightness (nits) 15,000 nits, LCD panel 30,000 nits
Contrast ratio 500:1
Operation temperature Ambient operating temperature -10C to +85C
