Marine Class-FD 6-Channel Stereo Amplifier.

A New Wave.

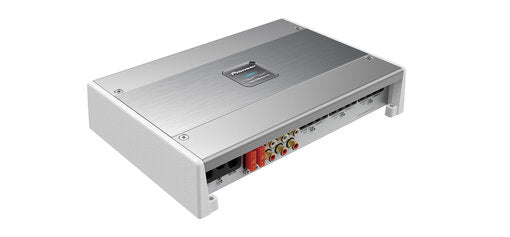

Pioneer's GM-ME600X6 is a Marine grade Class-D digital amplifier specifically designed for the marine environment, including features such as special painting, protective covers for the side panels and RCA terminal covers.



To prevent circuit shutdown, Pioneer's GM-ME600X6 digital amplifier circuit includes a "Protection Control System", which senses its internal temperature and automatically moderates input level accordingly. This design enhances the flexibility to connect multiple marine speakers and subwoofer to a system.



For extra flexibility, easy installation is guaranteed thank to "Automatic Signal Sensing and Turn-On", which automatically detects an input signal and turns the amplifier on and off when connected via the speaker line input.



Variable High Pass Filter (HPF) and Low Pass Filter (LPF) means you can adjust the audio frequency more according to the speaker, subwoofer characteristics and personal listening preferences.



The GM-ME600X6 has a hairline and matte treated aluminium top plate, giving it a nice look and feel.

Specifications

Speaker line input sensor
Speaker line input sensorconnect your existing OEM unit without the hassle of add-on adapters
Variable LPF
Variable LPFadjust your low-pass filter frequency for greater audio system flexibility
Variable HPF
Variable HPFadjust your high-pass filter frequency for greater audio system flexibility
Multi-block Terminal
Multi-block Terminalsmoothly connect up to 4 subs for high-power audio output
D-class
D-classenjoy first class sound and powerful volume on a versatile system at half the size of other units
View all specifications

Full specifications

Main Features

Speaker line input sensor Turn-on sensor
Variable LPF
D-class
Channel(s) 6/5/3
Speaker Terminals Block-type
Continuous Power Output Normal Mode: 6 x 75W RMS (4Ω), 6 x 100W RMS (2Ω)
- Mono Mode: 3 x 150W RMS (4Ω)
High Power Mode: 6 x 100W RMS (4Ω), 6 x 100W RMS (2Ω)
- Mono Mode: 3 x 200W RMS (4Ω)
Frequency response 10Hz~240Hz (+0dB,-3dB)
Input level control RCA (0.2V - 6.5V)
SP (0.8V - 16V)
Distortion < 0.05 %
S/N ratio > 95 dB
Max. current consumption 56A (High Power Mode)
Size 260(W) X 50.6(H) X 180(D) mm
Unit weight 2.6kg
Crossover Frequency 50-500Hz, (-12dB/oct) Hz
Load impedance capability 2 ~8Ω

Audio

Variable HPF
RCA Terminals
Low Pass Filter
High Pass Filter

Connections

Multi-block Terminal
