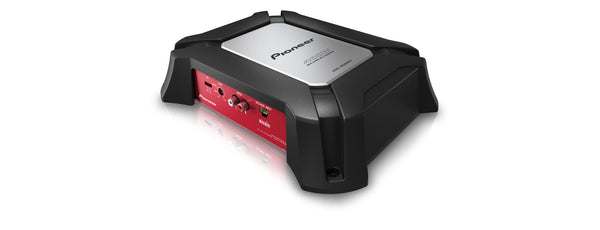

GM-3500T 2 Channel Bridgeable Amplifier (400W)
Installation freedom.
Designed to fit both cosmetically and technically with our subwoofers, the GM-3500T amplifier gives you total installation freedom and no distortion.
With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for.
This 2-channel amp allows you to drive multiple speakers and subwoofers, it’s also bridgeable to power a single sub.
Specifications
| Main Features | GM-3500T |
|---|---|
| Maximum Output Power | 2 x 200W (4 Ω) or 1 x 400W (bridged) (4Ω) |
| CEA 2006 Power (THD + N = 1%) | 60W RMS X 2 |
| Continuous power output (RMS) | • 14.4V (20Hz-20kHz/4Ω): 2 x 60W / 1 x 185 W (bridged) • 14.4V (20Hz-20kHz/2Ω): 2 x 85W |
| Load impedance capability | 4Ω |
| Frequency response | 10 - 70 k Hz |
| Distortion | < 0.03 % |
| S/N ratio | > 90 dB |
| LPF | 80 Hz (-12 dB/Oct) |
| RCA terminals | Yes (input) |
| Speaker Terminals | Screw-type |
| High Voltage Input | 0,8 - 26 V |
| Input level control | 200 mV - 6,5 V |
| Max. current consumption (A/4Ω) | 15 A |
| Chassis size (W x H x D) | 289 x 62 x 219 mm |
| Unit weight | 2.0 kg |
