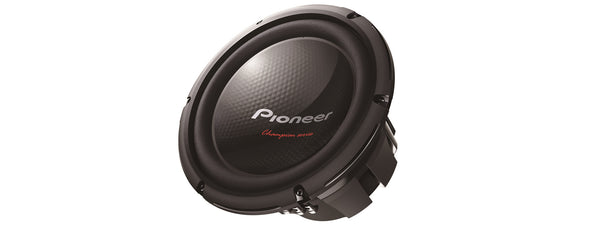

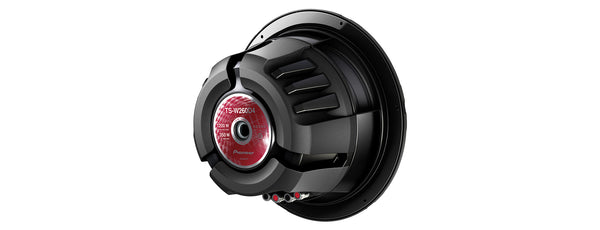

TS-W260D4 25 cm Dual Voice Coil Subwoofer (1200W)
More bass. More power. Greater flexibility.
Get powerful, punchy bass in your car – from the pedigree of world record-breaking subs.
The TS-W260D4 features a combined IMPP cone, which makes the body ultra-rigid yet lightweight, giving you low distortion and powerful bass at high sound press levels.
Specifications
| Features | TS-W260D4 |
|---|---|
| Maximum input power | 1.200 W |
| Nominal input power | 350 W |
| Impedance | 2Ω / 8Ω |
| Frequency response | 20 - 250 Hz |
| Sensitivity (1W/1m) | 93 dB |
| Woofer size | 25,0 cm |
| Woofer material | IMPP Composite Seamless Cone |
| Voice Coil type | Dual |
| Pole Yoke Type | Extended and Vented pole yoke |
| Terminals | Push-type |
| Weight | 4,59 kg |
| Surround | Dual Layer Fiber Reinforced Elastic Polymer Surround |
| Thiele/Small Parameters | TS-W260D4 |
| Qts | 1,15 |
| Fs [Hz] | 47 Hz |
| Vas [l] | 11,5 |
| Vas [ft3] | 0,41 |
| Xmax [mm] | 12,2 |
| Xmax [in] | 0,5 |
