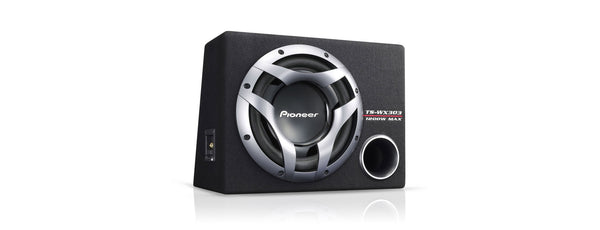

TS-WX303 - Bass Reflex Sub 1200W


Pin It
Back to Car Previous Product Next Product



Tight, punchy and powerful bass.

Constructed with thick MDF board for assured strength and stability, the TS-WX303 bass reflex sub has a well-tuned bass reflex port to reproduce powerful bass tones.

Now with an increased power handling capability of 1200W, it features an Injection Moulded Polypropylene (IMPP™) cone, constructed from a composite blend of interlaced, Aramid fibres. This makes it extremely rigid, yet lightweight, for low distortion and powerful bass at high sound press levels.

The TS-WX303 has an extended, vented pole yoke, delivering a vast improvement in linearity.

Be sure to see our GM-3500T amplifier, the ideal complement to the TS-WX303 for an optimal in-car sound experience.


Features TS-WX303
Maximum input power 1.200 W
Nominal input power 250 W
Frequency response 10 - 220 Hz
Sensitivity (1W/1m) 98 dB
Woofer size 30,0 cm
Woofer material IMPP composite cone woofer with Strontium magnet
Pole Yoke Type Extended and Vented pole yoke
Dimensions 482 x 372,6 x 366,8 mm
Weight 12
Thiele/Small Parameters TS-WX303
Nom. Dia.(In) 10
Qts 0,420
Qms 3,520
Qes 0,470
Fs [Hz] 23,9
Vas [l] 59,16
Vas [ft3] 2,09
Vd [l] 0,245
Vd [ft3] 0,00982
Sd [m2] 0,0471
Sd [ft2] 0,447
Revc [Ω] 3,3
Levc [mH] (2000Hz) 3,160
Xmax [mm] 5,9
Xmax [in] 0,23
Zmax [Ω] 63,500
BI [Tm] 11,020
Rms[Ns/m] 5,426
Mms [g] 123,23
Cms [m/N] 0,00027
Mg.Wt.[g] 920
Flux Density [Gauss] 3950
Hag [mm] 6
Hag [In] 0,236
Hvc [mm] 18
Hvc [In] 0,720
VC.Diameter [mm] 40
Eff [%] 0,17
S.P.L. [dB] 93.0 (1W)
R.M.S.Power [W] 200
M.M.P. [W] 1000
Sp. Displacement [l] 1,33
Sp. Displacement [ft3] 0,047
Recom. Enclosure [l] 22,6
Recom. Enclosure [ft3] 0,80
F0 (in Cabinet) 45,4
Q0 (in Cabinet) 0,798
