1-Channel (Front) Dash Camera, Full HD, 30 fps. 139° Wide Viewing Angle. Also features GPS, Wireless Connection and Security Mode.
Your Third Eye On The Road.
Install a Pioneer Dash Camera for peace of mind by protecting you from fraudulent insurance claims by being able to use the recorded footage in the event of an incident, giving you the ability to identify who is at fault quickly and easily. In some countries installing a Dash Camera can even reduce your insurance* premium.

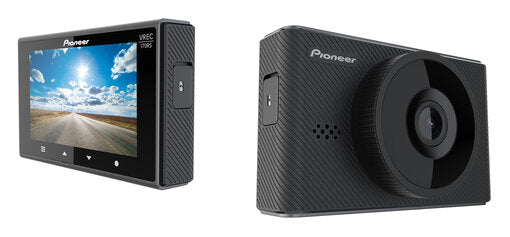

The Pioneer VREC-170RS is a 1-Channel front facing Dash Camera with a 3.0" LCD screen.
The VREC-170RS has a Wide Viewing Angle of 139°, allowing you to capture data that other cameras cannot, in FULL HD. The VREC-170RS also includes GPS and Built-in Wireless Connection, designed so you can connect your smartphone via the exclusive Pioneer "Dash Camera Connect" app. Check recorded videos or set up the Dash Camera on the screen of a compatible iPhone or Android™ smartphone.
The VREC-170RS is easy to connect thanks to the supplied cigar charger power connector and easy to install mounting cradle.
The VREC-170RS is compatible with a 16 GB to 32 GB microSD Card (Class 10) maximum. Pioneer does not guarantee microSD Card compatibility. microSD Card sold separately.
*Country Specific. Please check with your local insurance company.
Specifications
Full specifications
Main Features
| 1-Channel Dash Cam | |
| Full HD | |
| 139° Wide Viewing Angle | |
| Security Mode | |
| GPS | |
| Wireless Connection | |
| Image Quality | Front: Full HD (1920 x 1080 p) |
| Viewing Angle | Front Camera: Horizontal 100°, Vertical 52°, Diagonal 139° |
| F-Value | Front Camera: F2.1 |
| Frame Rate (fps) | Front Camera: 30 fps |
| Camera Type | Front |
| Screen | 2.0" Full Colour IPS LCD screen |
| Smartphone App | Yes |
| Sound Recording | On / Off |
| Recording Modes | Normal / Event / Photo / Parking |
| Continuous Recording Time | 1 min / 3 min / 5 min |
| Event Recording Times | 31 sec |
| Manual Recording Times | 33 sec |
| Parking Mode Recording Times | 60 sec |
| Parking Surveillance Recording: Built-in Battery | 60 sec |
| Video Recording Format | MOV (H.246) |
| Still Image Capture | |
| Still Image Format | JPEG |
| Date and Time Setting | |
| Loop Video Recording | |
| Speed Limit Alert | |
| Advanced Driver Assistance Systems (ADAS) | Lane Departure Warning System (LDWS) Front Collision Warning System (FCWS) |
| Automatically Start Recording | |
| MicroSD Card Capacity | 16 GB to 32 GB |
| MicroSD Card Compatibility | microSDHC memory card class 10 |
| MicroSD Card Format Warning | |
| Battery Type | Supercapacitor |
| Built-in Battery Capacity | 470mAh |
| Power Consumption | Approximately 2.3 W / 12 V |
| Power Supply Voltage | 12 V / 24 V DC |
| Power Connection Type | Cigar charger power cable |
| Power Cable Length | 3.5 m |
| Operating Temperature | -20° to +60° |
| Dimensions (W x H x D) | Front Camera: 89.5 mm x 54.3 mm x 29.9 mm |
| Weight | Front Camera: 94g (Excluding installation brackets, etc.) |
| Graphic User Interface (GUI) Languages | English / French / German / Spanish / Polish / Russian / Ukrainian |
| What's In The Box | Front Camera / Mounting Cradle / Cigar Charger Power Cable / Quick Start Guide / Warranty Document |
