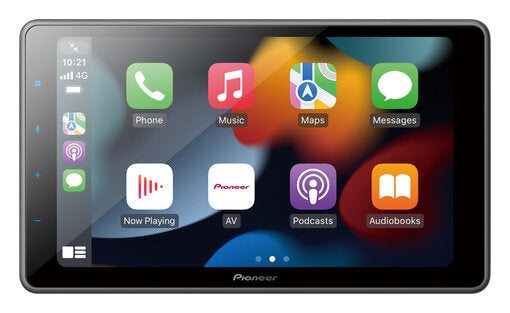

Thanks to its modular structure, the 9-inch SPH-EVO950DAB-UNI2 can be fitted to cars where this was previously impossible. 9" Capacitive touchscreen modular multimedia player with easy smartphone connectivity supporting Apple CarPlay wireless, Android Auto wireless, DAB/DAB+ Digital Radio, CarAVAssist App, Spotify, Waze, Bluetooth and a 13-band GEQ
With the ‘floating’ or ‘tablet’ style installation the SPH-EVO950DAB-UNI2 modular receiver can be installed into many vehicle types, for example, traditional 2-DIN, or vehicles where a traditional stereo does not fit thanks to its unique universal floating installation or in-dash installation capabilities.
Pioneer introduces two new unique capabilities on the SPH-EVO950DAB-UNI2.
1. Pioneer Split Screen Mode, to display and control specific functions on an adjacent partition of the screen by dynamically resizing the Apple CarPlay or Android Auto user interface.
2. Selectable Viewing Mode, giving you enhanced visibility by allowing you to switch the mode of the screen between Light Mode and Dark Mode, to suit your preference.
Specifications
Full specifications
Main Features
Wi-Fi® | |
Apple CarPlay | |
Apple CarPlay Connection | Wireless connection or wired USB connection |
Android Auto | |
Android Auto Connection | Wireless connection or wired USB connection |
Waze | Yes. (Via Apple CarPlay / Android Auto) |
Digital Radio Tick Mark Approved product | |
Bluetooth® | |
9" Capacitive Touchscreen | |
Dual Camera Input | |
Multi colour illumination | |
CarAVAssist App | |
Modular design | |
WebLink | |
Mechafree | |
Cellular telephone auto muting | |
USB Input | |
Camera Input | 2 |
Screen Size | 9" |
Plays | • Your iPhone, Android Smartphone • Bluetooth audio Via USB: • MP3, WMA, AAC, WAV, DSD and FLAC audio files • H.264, MKV, FLV, TS and MPEG4 video files in Full HD • Mpeg2, DivX video files • JPEG image files |
Customisable Key and Display Illumination | |
Installation Type | Modular and 2-DIN |
Accessories | Included: • 1 x USB extension cable • 1 x GPS Antenna • 1 x External Bluetooth mic Optional: • CA-AN-DAB.001 (DAB antenna) • ND-BC8 (Reverse camera) • CA-RGB200E display extension cable |
Button Illumination | RGB Colour Customisation (210.000 Colours) |
Screen | 9" WSVGA Capacitive Multi-touchscreen |
Pioneer Split Screen Mode | |
USB Input | 1 |
Apple Compatibility
Made for iPhone | |
Siri Eyes Free | |
Supported Functions | • Battery charging • Music playback • Siri Eyes Free |
Audio
FLAC | |
13-band Graphical EQ | |
MOSFET 50 W x 4 Amplifier | |
Graphic Equaliser | 13-band |
Network Mode | 3-Way Network Mode |
Manual TA (Time Alignment) | |
High Pass Filter | |
Low Pass Filter | |
Subwoofer Control | |
RCA Pre-Outs | 3. (Front, rear and subwoofer) |
Advanced Sound Retriever | |
Source Level Adjuster | |
Loudness |
Android Compatibility
Compatible with Android | |
Quick Charge for Android |
Tuner Features
DAB+ Digital | |
RDS FM Radio |
Connections
Aux-in | 1 rear AV Aux-In |
Portable Device Connectivity | 1 rear AV Aux-In |
Hard Wired Remote Ready | |
CAN Bus | UART |
Video output | Analog |
ISO connector |
Bluetooth
Hands-free calls | |
Additional Bluetooth Features | • Audio streaming • Automatic Phone book Transfer (1000 contacts) • 2 Phones full time connect • Up to 5 phones can be registered • Auto pairing via USB |
Compatibility | HFP/A2DP/AVRCP |
