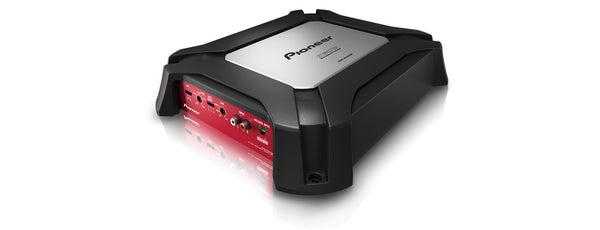

GM-5500T - 2 Channel Bridgeable Amplifier 820W
GM-5500T 2 Channel Bridgeable Amplifier (820W)
Configure the perfect setup. Start here.
Designed to fit both cosmetically and technically with our subwoofers, the GM-5500T amplifier gives you total installation freedom and no distortion.
With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for.
This 2-channel amp allows you to drive multiple speakers and subwoofers, it’s also bridgeable to power a single sub.
|Maximum Output Power||2 x 410W (4 Ω) or 1 x 820W (4Ω bridged)|
|CEA 2006 Power (THD + N = 1%)||125 W RMS X 2|
|Continuous power output (RMS)||• 14.4V (20Hz-20kHz/4Ω): 2 x 125 W/1 x 400W (bridged)
• 14.4V (20Hz-20kHz/2Ω): 2 x 190W
|Load impedance capability||4Ω|
|Frequency response||(+0dB , -3dB) 10Hz ~ 70k Hz|
|Distortion||< 0.03 %|
|S/N ratio||> 90 dB|
|Bass Boost||50 Hz; 0/6/12 dB|
|LPF||40-500 Hz (-12 dB/oct)|
|RCA terminals||Yes (input)|
|High Voltage Input||200 mV - 6.5 V|
|Input level control||0.8 - 26 V|
|Max. current consumption (A/4Ω)||29 A|
|Chassis size (W x H x D)||289 x 62 x 349 mm|
|Unit weight||3,3 kg|
