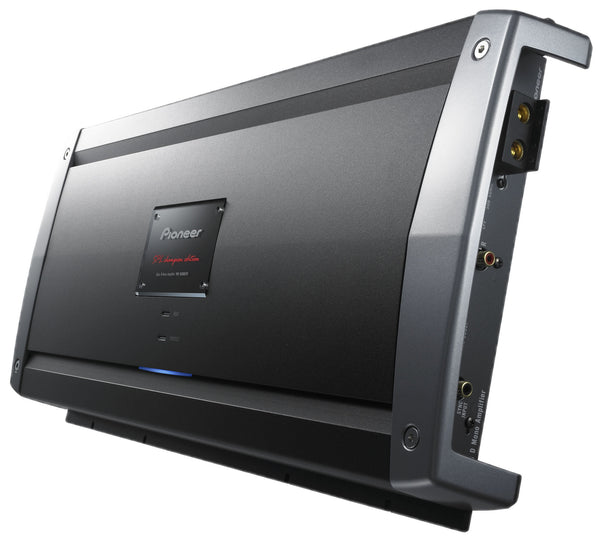

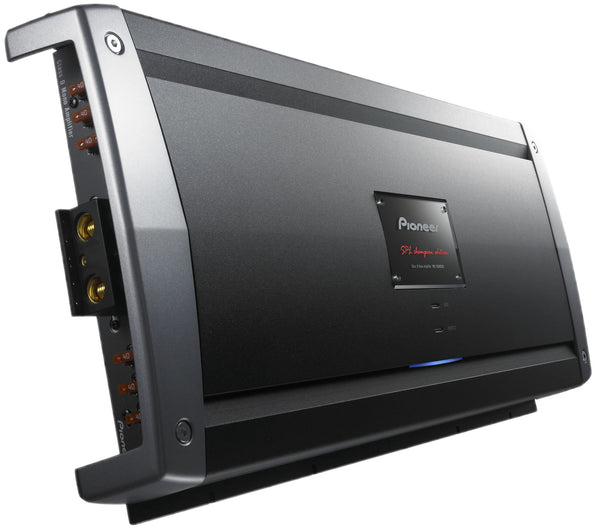

PRS-D2000SPL - Competition Class SPL Class-D Amplifier (4000W)
PRS-D2000SPL Competition Class SPL Class-D Amplifier (4000W)
Trusted for maximum, stable and reliable power.
Designed to match our first-class SPL subwoofers, our SPL Champion Edition amps continuously break world records, pushing beyond the 180dB barrier.
They manage to do this by incorporating the very best in audio technology, to give you rock-solid, reliable power.
The D2000 delivers 1 x 4000W at 1Ω, 1 x 3000W at 2Ω and 1 x 1500W at 4Ω.
The D2000 includes an Independent Rail Regulating Power (IRRP) supply. This power supply structure regulates the positive and negative rail voltages separately, whereas most amplifiers regulate the positive rail alone.
The negative rail could destabilise during a crucial SPL moment, resulting in overall loss of performance; the IRRP boosts strength, so you can rely on the power when you need it most.
The D2000 also includes a protective circuitry (DAP: Dynamic Amplifier Protection) that adapts to the output signal level. As a result, the protection level matches the operating condition of the moment. Again, DAP gives you extra reliability, even at higher output.
Highly efficient Class-D technology is part of the amplifier construction, as well. That means less current for less heat, with no distortion, so that your sound always stays pure, crisp and clear.
|Maximum Output Power||1 x 4000W (1Ω), 1 x 3000W (2Ω), 1 x 1500W (4Ω)|
|Continuous power output (RMS)||
• 1 x 2000W (50Hz/1Ω ≤ 1%THD)
• 1 x 1500W (50Hz/2Ω ≤ 1%THD)
• 1 x 750W (20Hz - 240Hz/4Ω ≤ 1%THD)
|Load impedance capability||1 - 8Ω|
|Frequency response||10 - 240 Hz|
|Distortion||< 0.3 %|
|S/N ratio||> 85 dB|
|Bass Boost||40 - 120Hz
0, 6, 9, 12 dB via remote control
|LPF||40 - 240Hz (-24dB/Oct)|
|Subsonic Filter (HPF)||20Hz (-24dB/Oct)|
|MOSFET output section||Yes|
|RCA terminals||Yes (input/output)|
|High Voltage Input||200mV - 6.5 V|
|Input level control||400 mV - 6.5 V|
|High performance balanced isolator circuit||Yes|
|Max. current consumption (A/4Ω)||67A|
|Chassis size (W x H x D)||586 x 65 x 282 mm|
|Unit weight||9.1 kg|
