TS-SW3001S2 - 30cm Shallow-type 2Ω Single Voice Coil Sub 1500W

€139.00 €190.00

Pin It
Back to Special Offers Previous Product Next Product

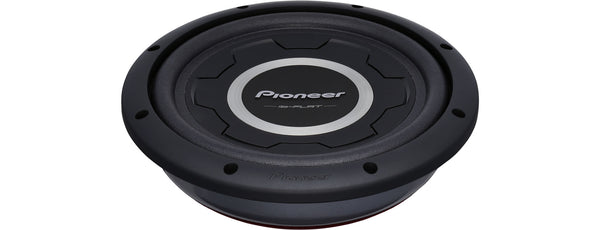

TS-SW3001S2 30cm Shallow-type 2Ω Single Voice Coil Sub (1500W)





A 30cm sub that is just 8.1cm deep.

Now you can boost your car audio with 1500 Watts of pure, solid bass of a superior sub without losing too much space in your car.

Designed for enclosed use, the TS-SW3001S2 combines the interlaced basalt and carbon fibre reinforced IMPP (Injection-Moulded Polypropylene) double cone and our unique damper-less air suspension excursion control system.

A typical sub uses a damper to control the woofer’s cone excursion. Our air suspension system creates a sealed air space between the double cones, effectively replacing the damper and providing superior compliance linearity - regardless of the volume input - for reproducing exceptionally clear, low distortion bass sound.

With an impedance of 2Ω, the TS-SW3001S2 draws more power from an amplifier, so you can use a smaller amplifier to save space, withouth any loss in the sound pressure level.



  Basalt Blended Cone



Specifications

Features TS-SW3001S2
Maximum input power 1.500 W
Nominal input power 400 W
Frequency response 20 - 230 Hz
Sensitivity (1W/1m) 93 dB
Woofer size 30,0 cm
Woofer material Basalt & Carbon Fiber reinforced IMPP Upper Cone
Recommended sealed enclosure 14,2 - 28,3 litres
Thiele/Small Parameters TS-SW3001S2
Nom. Dia.(In) 12
Qts 0,820
Qms 13,210
Qes 0,880
Fs [Hz] 36,8
Vas [l] 17,96
Vas [ft3] 0,634
Vd [l] 0,416
Vd [ft3] 0,014683838422795
Sd [m2] 0,0495
Sd [ft2] 0,533
Revc [Ω] 1,5
Levc [mH] (2000Hz) 1,300
Xmax [mm] 8,4
Xmax [in] 0,33
Zmax [Ω] 27,39
BI [Tm] 10,830
Rms[Ns/m] 4,492
Mms [g] 256,62
Cms [m/N] 0,000073
Mg.Wt.[g] 2040
Flux Density [Gauss] 5760
Hag [mm] 10
Hag [In] 0,394
Hvc [mm] 27
Hvc [In] 1,055
VC.Diameter [mm] 65
Eff [%] 0,10
S.P.L. [dB] 93,0
R.M.S.Power [W] 400
M.M.P. [W] 1500
Sp. Displacement [l] 2,81
Sp. Displacement [ft3] 0,099
Recom. Enclosure [l] 18,4
Recom. Enclosure [ft3] 0,65
F0 (in Cabinet) 51,7
Q0 (in Cabinet) 1,153
