Perfectly integrated Motorhome Navigation for your Ducato with Apple CarPlay and Android Auto, SDA-HU100 Head-Up Display andDucato Tacho Top-cover.

Clear, safe and futuristic way of navigating.

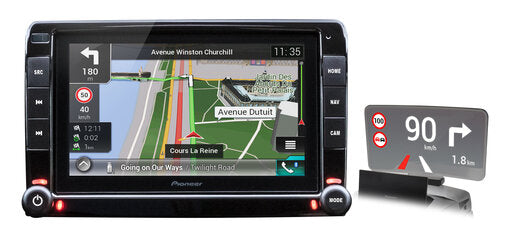

Pioneer’s unique combination of the AVIC-EVO1-DT2-C-HU NAVGATE EVO System and SDA-HU100 Head-Up Display perfectly matches the look & feel of your Ducato X290*. It projects turn-by-turn navigation, distance to the next turn, current speed and speed limits directly on the display in front of you. No matter you are driving through tunnels or in bright sunlight, the brightness of the display will be automatically adjusted. Besides that, it brings high-end navigation, Apple CarPlay & Android Auto, as well as outstanding audio/video performance, all smartly together in a single, easy to use package.


The beautiful, easy to read 7” WVGA capacitive multi-touch screen lets you control maps, apps and audio/video functions by touch.


NAVGATE EVO is equipped with Pioneer’s acclaimed AVIC technology, which offers precise navigation with up-to-date map data for 46 European countries with over 10 million points of interest (POI) and a database of POI dedicated for motorhomes (fe.: Bordatlas and ViaMichelin). Voice guidance offers instructions in 30 different languages. Unique features such as 3D Gyro, Speed Pulse and Reverse sensors precisely measure your vehicle’s movements, so the system knows your vehicle’s exact direction.


The system is Apple CarPlay & Android Auto compatible. Both let you connect a compatible Apple or Android phone for communications, music, navigation and more, all while you keep your eyes safely on the road. It has an integrated DAB/DAB+ digital radio tuner and very powerful audio/video system with sophisticated Auto EQ/Auto Time Alignment** functions and a 13 band Graphic EQ, which allows you to create your own preferred sound style. Last but not least, you’ll get MOSFET 50W x 4 of pure amplifier power.


The CAMERA Button provides direct access to your reverse Camera screen to verify the condition of your trailer.


*Fiat Ducato X290 , Peugeot Boxer X290 and Citroen Jumper X290. For the X290 version compatibility “open dash” preparation or “1DIN” radio is required.

**Optional microphone needed


CamperVan Navigation
CamperVan NavigationNavigate safely and conveniently across Europe thanks to detailed built-in navigation maps dedicated for Campervan users.
HERE<sup>®</sup> Maps
HERE® MapsA comprehensive map database from HERE® covering Europe, enabling users to route to millions of destinations.AVIC models ensures that you can have the most recent map database thanks to Latest Map Guarantee.
TMC (Traffic Message Channel)
TMC (Traffic Message Channel)Stay informed of traffic and travel information delivered directly to your navigation system.
Apple CarPlay
Apple CarPlayIs the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
Android Auto
Android AutoExtends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
DAB+Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
Digital Radio Tick Mark Approved product
Digital Radio Tick Mark Approved productManufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
Bluetooth®Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
7" Capacitive Touchscreen
7" Capacitive Touchscreen7" Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.
Made for iPod / iPhone
Made for iPod / iPhoneDirectly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
MIXTRAXMIXTRAX keeps the party going with a non-stop mix of your music library complete with a range of DJ-inspired effects and club-style illumination.
FLACEnjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
13-band Graphical EQ
13-band Graphical EQAdjust your audio output in detail for a music experience tailored to your preferences.
View all specifications

Full specifications

Main Features

CamperVan Navigation
HERE® Maps
TMC (Traffic Message Channel)
Apple CarPlay
Android Auto
Digital Radio Tick Mark Approved product
7" Capacitive Touchscreen
Simultaneous Navigation and AV Entertainment
FM Radio
Made for iPod
USB Input
Screen Size 7" WVGA anti-glare, capacitive touch screen
Multi-Sensor Navigation
Menu Languages Czech
Danish, Dutch
English (UK)
Finnish, French
German, Greek
Polish, Portuguese
Spanish, Swedish
Plays • RDS FM/AM Tuner (24 preset stations)
• DAB+ Tuner with Time Shift function
• Your iPod, iPhone, Android Smartphone
• Bluetooth audio
• Other music and video devices via the Aux-In

Via USB:
• AAC, FLAC, MP3, WAV and WMA audio files
• DivX, FLV, H.264, MKV, MPEG4 and WMV video files
• JPEG image files
Dual Zone Entertainment
Anti-Theft Protection
Voice Guidance
Text-to-Speech Voice Guidance Yes (10 languages)
Installation Type Custom for Ducato
Accessories 2 USB extension cables
1 External Bluetooth microphone
1 GPS Antenna
Vehicle Adapter with CAN connection

Apple Compatibility

Made for iPod / iPhone
Works with iPhone
Compatible Generations • iPhone 7 / 7 Plus / SE / 6s / 6s Plus / 6 / 6 Plus / 5s / 5c / 5
• iPod Touch 6th generation / 5th generation
• iPod Nano (7th generation)
Supported Functions • Battery charging
• Music playback
• Siri EYes Free


Dual USB
Aux-in 1 in original location
Reverse Camera Input Yes
Portable Device Connectivity Yes via mini-jack RCA Cable (not included)
Hard Wired Remote Ready


13-band Graphical EQ
MOSFET 50 W x 4 Amplifier
Graphic Equaliser 13-band
Listening Position Selector
Auto EQ (Equaliser)
Auto TA (Time Alignment)
High Pass Filter
Low Pass Filter
RCA Pre-Outs 3. (Front, rear and subwoofer)
Advanced Sound Retriever
Advanced Audio Features • Source Level Adjuster
• Dual zone

Android Compatibility

Supported Functions • Music playback
• Battery charging

Navigation Features

Map Type Pre-installed on built-in flash memory
Points of Interest (POI) 10 million
3D Cities
3D Landmarks
Drag & Drop Menu Setting
TMC (Traffic Message Channel) Yes built-in RDS-TMC
Navigation Coverage Andorra, Austria
Belgium, Belgrade, Bulgaria
Croatia, Czech Republic
Finland, France
Germany, Gibraltar, Greece
Iceland, Ireland, Italy
Latvia, Liechtenstein, Lithuania, Luxembourg
Malta, Monaco
Netherlands, Norway
Poland, Portugal
San Marino, Slovakia, Slovenia, Spain, Sweden, Switzerland
United Kingdom (incl. Northern Ireland), Ukraine
Vatican City

Additional connector roads for Albania, Belarus, Bosnia and Herzegovina, Macedonia, Moldavia, Serbia, Montenegro.
Voice Guidance Languages Arabic
Danish, Dutch
English (UK) Estonian
Finnish, Flemish, French
German, Greek
Hebrew, Hungarian
Latvian, Lithuanian
Polish, Portuguese
Romanian, Russian
Serbian, Slovakian, Slovenian, Spanish, Swedish


Parrot Bluetooth
Voice Recognition
Hands Free Calling (Hands Free Profile)
Music Streaming
Additional Bluetooth Features Music streaming via A2DP & AVRCP 1.6
Phone book transfer
800 entries for each user (20 phones max.)
Sound Retriever AIR

Head-Up Display

Panel size (inch) 1,24
Resolution (pixels) 336*168*3
Viewing Distance (mm) 2000
Virtual image size (inch) 11,5
Brightness (nits) 30.000
Contrast ratio 900
Operation temperature -30 till +85 °C
Non-operation temperature -40 till +90 °C
Combiner size (mm) 170 * 94
Functions Turn-by turn navigation from AVIC
Vehicle speed
Speed limit information*
Lane Departure Warning*

*If the car is equipped with ADAS function
