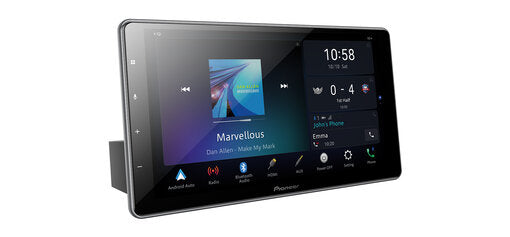

9" Capacitive touchscreen "Floating Display" multimedia player with easy smartphone connectivity supporting Apple Carplay wireless, Android Auto wired,Hi-Res Audio, Hybrid Radio, Spotify, Waze, Bluetooth and a 13-band GEQ. (Only available in Russia and DSD area)
"Floating Display" receivers for smart upgrades.
The Wi-Fi® enabled DMH-ZF9350BT features a design combining a large 9” touchscreen display upgrade solution for drivers’ entertainment needs. The new receivers feature smartphone connectivity - Android Auto™ (wired) and Apple CarPlay™ (via wireless connection) -, as well as entertainment features such as Spotify®, Bluetooth® streaming, Hybrid Radio, 13-band GEQ, Hi-Res Audio and more.
Specifications
Wi-Fi®With built-in Wi-Fi® you can enjoy wireless connectivity specifically designed to support a cable free data connection between your smartphone and the receiver.
Apple CarPlayIs the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
Android AutoExtends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
Hybrid RadioWhen you leave the broadcast area of your favourite DAB+ or FM Radio station, internet streaming becomes available automatically. Hybrid Radio makes sure that you can receive your favourite radio station everywhere! At the same time, metadata that is available through internet connection can be displayed also whilst tuned to FM.
Bluetooth®Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
9" Capacitive TouchscreenA fully flat touchscreen that allows for fast and responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips, in very high detail.
Made for iPod / iPhoneDirectly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
HDMI InputConnect any HDMI equipment to the Pioneer device for optimal video and audio connectivity.
Dual Camera Input Dual camera inputs enable you to add a reverse (rear facing) camera and front facing camera that can assist with front and rear visibility, towing, or parking.
Siri Eyes Freemake use of your iPhone's Siri functionality through your unit's external microphone and the speakers of your vehicle
Compatible with AndroidConnect and listen to music stored on your device without the need for an app
SpotifyWith Spotify, just connect your smartphone to comfortably browse your favourite playlists, albums, tracks and artists using your headunit controls.
Multi ColourMatch the display and key illumination to your vehicle's interior lighting with a range of endless colour combinations.
USB InputConnect any device with an USB interface cable to charge your device or listen to clean, clear sound.
FLACEnjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
13-band Graphical EQAdjust your audio output in detail for a music experience tailored to your preferences.
Full specifications
Main Features
| Wi-Fi® | |
| Apple CarPlay | |
| Apple CarPlay Connection | Wireless connection or USB connection |
| Android Auto | |
| Waze | Yes. (via Apple CarPlay /Android Auto) |
| Navigation Ready | Yes. (via AVIC-F160-2 & AVIC-F260-2, sold separately) |
| Bluetooth® | |
| 9" Capacitive Touchscreen | |
| HDMI Input | |
| Dual Camera Input | |
| Spotify | |
| USB Input | |
| FM Radio | |
| Screen | 9" WXGA Capacitive Multi-touchscreen |
| Cellular telephone auto muting | |
| Installation Type | 1DIN Floating Display |
| Front Panel | Multi-colour display and screen |
| Plays | • Your iPod, iPhone, Android Smartphone • Bluetooth audio Via USB: • MP3, WMA, AAC, WAV and FLAC audio files • H.264, MKV, FLV and MPEG4 video files in Full HD • Mpeg2, DivX video files • JPEG image files |
| Accessories | Included: • 1 x USB extension cable • 1 x USB Type C - USB Type A Adaptor • 1 x External Bluetooth mic • 1 x Remote Control Optional: • CD-RGB150E (1.5m Extension Cable) • CD-MC20 (Auto EQ microphone) • ND-BC8 (Reverse camera) |
| Other | Pioneer Car AVAssist app compatible |
| USB Input | Rear USB(-C) |
Connections
| Hybrid Radio | • Metadata for every Radio Source • Recommended Radio Station • Network Following (FM / IP Radio) |
| Aux-in | 1 rear AV Aux-In |
| Video output | Analog |
| Hard wired remote input | |
| ISO connector | |
| RGB input | 1 |
| High Voltage Output | 4V |
Apple Compatibility
| Made for iPod / iPhone | |
| Siri Eyes Free | |
| Works with iPhone |
Android Compatibility
| Compatible with Android |
Screen Features
| Multi Colour | RGB Colour Customisation (210,000 Colours) |
Audio
| FLAC | |
| 13-band Graphical EQ | |
| MOSFET 50 W x 4 Amplifier | |
| RCA Pre-Outs | 3 (Front, Rear, Subwoofer) 5V |
| 3-Way Network Mode | |
| Source Level Adjuster | |
| High Pass Filter | |
| Low Pass Filter | |
| Loudness | |
| Graphic Equaliser | 13-band |
| Auto EQ (Equaliser) | |
| Time Alignment | |
| Subwoofer Control | |
| Advanced Sound Retriever |
Bluetooth
| Pioneer Bluetooth | |
| Additional Bluetooth Features | • Audio streaming • Automatic Phone book Transfer (5 x 1000 contacts) • 2 Phones full time connect • Autopairing via USB |
| Compatibility | HFP/A2DP/AVRCP |
| Hands-free calls |
Tuner Features
| RDS FM Radio |
