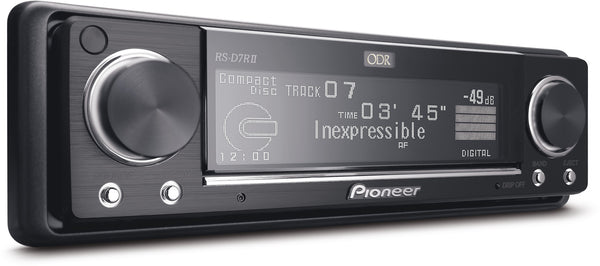

RS-D7RII Optical Digital Reference System Control CD Tuner


True sound perfection.

Used by Team PioneerOur first-class RS-D7RII brings sound perfection to life. It combines sophisticated high-end technologies and the most select materials, featuring specially-designed master clock circuits for even greater sound quality.

With a deep black hairline aluminium finish, the RS-D7II is designed for intelligent and easy system control. It connects perfectly with the RS-A9 digital amplifier or RS-P90 digital preamp.

It is this state-of-the-art combination that makes up our Optical Digital Reference system, which is able to reproduce music as close to the original source as possible. Thanks to the optical digital transmission, music signals are transferred precisely from the control unit to the amplifier.

Finally, every nuance can be heard.



Main Features RS-D7RII
Tuner AM, FM (24 pre-set stations)
Plays Your CD collection (including CD-R, CD-RW)
Front Panel Rich black aluminium (motorised and removeable auto-flap)
Display Illumination White OEL
Button Illumination White and red

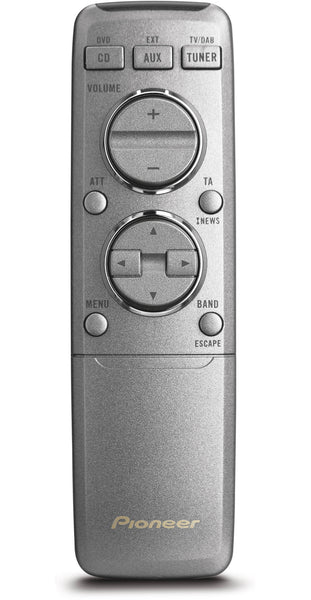

Remote Control Slide-type (included)
Cellular Telephone Auto Muting Yes
Connectivity RS-D7RII
IP Bus Yes
Optical Digital In Yes
Optical Digital Out Yes
Bluetooth RS-D7RII
Bluetooth Ready Yes, via optional CD-BTB200 adapter
Tuner Features RS-D7RII
Radio Data System (RDS) Yes
Traffic Announcement Yes
Best Stations Memory (BSM) Yes
Auto Alternative Frequency Search Yes
Auto/Manual Frequency Search Yes
PTY Search Yes
CD Player Features RS-D7RII
CD Text Yes
Disc Title Memory Yes
Last Position Memory Yes
Random Play Yes
Audio RS-D7RII
Audio Components • 70µm thin copper film subtrate for low impedance and large current capacity
• Custom condenser
• High-purity OFC power cable
• Temperature-stable amorphous chocking coil
Attenuator Yes
Balance Yes
Display Off Mode Yes
Fader Yes
Source Level Adjuster (SLA) Yes
High-End Features RS-D7RII
Clock Circuits 2
CD Mechanism • Highly stable to ensure noise and vibration-free signal processing
• Stable hologram technique and laser diode enables the reading of the most subtle music signals; even after continous reproduction and high heat
• Copper-plated chassis which avoids magnetic-induction noise
• M2052 damping alloy clamper prevents degradation of digital signal by minimising the pick-up control current caused by disc vibration
• High torgue spindle motor stables sound quality
• Hi-bit conversion
Power Supply Systems • 3 for the CD mechanism
• 4 for the control/display/tuner
