• TS-A2500LS4



Pin It

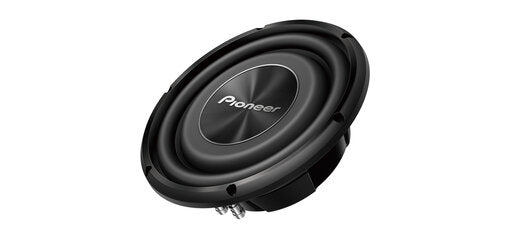

25 cm / 10" A-Series Component Subwoofer, 1200 W MAX. 300 W NOM.

Bigger cone, stronger bass, more power.

Discover the Pioneer TS-A Series of shallow component subwoofers. Designed with carefully selected materials to improve bass response, these subwoofers are the perfect match to be used alongside the TS-A Series of speakers. If you are looking for a sound upgrade combined with easy installation, then look no further than the TS-A Series.


This 25cm subwoofer is just 8.7cm deep and has an oversized cone that produces louder bass than ever. Boost your car audio with 1200 Watts of pure, superior bass without losing too much space in your car.


Designed for enclosed use, the TS-A2500LS4 is fitted with a single oversized cone structure with double spiders to increase power handling and generate a more accurate, louder bass. The single cone helps keep the overall moving mass down at manageable levels, which is extremely important for efficiency and sound quality reasons.


A typical sub uses a damper to control the woofer’s cone excursion. Our double spiders are more efficient as they need less power to move the cone while producing superbly detailed and low distortion bass.


CarSoundFit App
CarSoundFit App Car sound simulator application for an improved in-car sound experience
IMPPTMEnjoy outstanding midbass response with the Injection Molded Polypropylene Cone
View all specifications

Full specifications

Main Features

CarSoundFit App
Size 25 cm
Type Cone
Max Power 1200 Watt
Continuous power output 300 W
Frequency response 20 - 900 Hz
Sensitivity 85 dB
Impedance 4 Ω
Mounting Depth 87 mm
Woofer Cut-Out Hole ⌀ 230
Woofer material IMPP
Surround SBR
Voice Coil type Single Voice Coil
Voice Coil bobbin type Kapton
Terminals Push
Cut-out Hole 230 mm mm
25cm / 10" Shallow
Recom. Enclosure [l] 17 litres
Recom. Enclosure [ft3] 0.6 ft³
Weight 3.45 kg
Dimensions ⌀ 267 (diameter) x 103 mm

Thiele/Small Parameters

Qts 0.83
Fs [Hz] 38
Vas [ft3] 0.63
Vas [l] 17.9
Xmax [mm] 8.3
