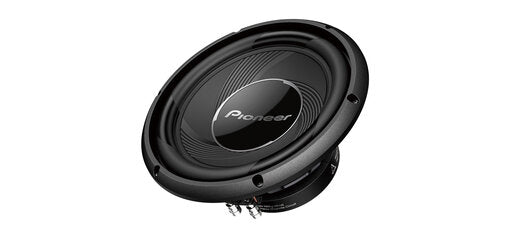

25 cm / 10" A-Series Component Subwoofer, 1200 W MAX. 350 W NOM. (Russian model)
For extra tight decibels.
Get powerful, punchy bass in your car – from the pedigree of world record-breaking subwoofers. This subwoofer features an IMPP composite seamless cone, which delivers superior durability and rock solid bass, from it's ultra-rigid, yet lightweight structure. All of these combined gives you low distortion and powerful bass at high sound pressure levels.
Wiring and installation is easy and the subwoofer is suitable for enclosed use. Its cosmetics match with our GM-A amplifier line-up and A-series speakers.
Specifications
CarSoundFit App Car sound simulator application for an improved in-car sound experience
IMPPTMEnjoy outstanding midbass response with the Injection Molded Polypropylene Cone
Full specifications
Main Features
| CarSoundFit App | |
| IMPPTM | |
| Size | 25 cm |
| Type | Cone |
| Max Power | 1200 Watt |
| Continuous power output | 350 W |
| Frequency response | 22 Hz to 1.4 kHz |
| Sensitivity | 85 dB |
| Impedance | 4 Ω |
| Mounting Depth | 128 mm mm |
| Woofer material | IMPP |
| Voice Coil type | Single Voice Coil |
| Voice Coil bobbin type | Aluminium |
| Terminals | Push |
| Magnets | FERRITE |
| Cut-out Hole | 230 mm |
| 25cm / 10" | |
| Recom. Enclosure [l] | 22.6 L |
| Recom. Enclosure [ft3] | 0.8 ft3 |
| Weight | 3.2 kg |
| Dimensions | 267 (Diam.) x 144 mm |
Thiele/Small Parameters
| Qts | 0,72 |
| Fs [Hz] | 39.2 Hz |
| Vas [ft3] | 0.8 ft3 |
| Vas [l] | 22.6 L |
| Xmax [mm] | 8.7 mm |
