• TS-C172PRS



Pin It

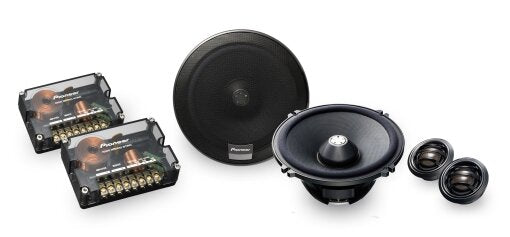

17cm Separate 2-way Reference Series Speaker System

High definition, competition-grade power.

This 17cm separate speaker system is part of the Pioneer Reference Series that was designed to deliver precise audio quality with competition-grade power. Improvements include better sound performance and better woofer installation.

The tweeter’s back chamber is enlarged, allowing lower frequency response than before. Usage of PCOCC wire, consisting of a very pure type of copper, offers a cleaner and more detailed sound. Furthermore the tweeter now features a black chassis.

For better quality and power handling in the lower range, a progressive damper is used in the new subwoofer. An inside magnet further enhances sound quality and also improves installation.

These improvements create a high-definition, ultra low distortion sound that, with stereoscopic and expansive staging, is unrivalled in its acuity.

• Also available as a 13cm component system.


IMPPTMEnjoy outstanding midbass response with the Injection Molded Polypropylene Cone
Pioneer Reference Series (PRS)
Pioneer Reference Series (PRS)settle for no less then exceptional sound quality with competition-grade power and high-end design
View all specifications

Full specifications

Main Features

Magnets Neodymium
Size 17 cm
Weight • Woofer: 1.21kg
• Tweeter ; 0.1kg
• Network ; 0.52kg kg
Impedance 4 Ω
Cut-out Hole 142 mm
Frequency response 25 - 35,000
Mounting Depth 67 mm
Sensitivity 89 dB
Lowest resonance frequency 45 Hz
Maximum power 200
Pioneer Reference Series (PRS)
Nominal input power 50 W
2 way component
Woofer material Multi-Layer IMX Aramid Fibre with IMPP™ composite cone woofer
Tweeter size 28 mm
Tweeter material Soft dome
Tweeter fitting kits included Surface mount slant spacer, flash mount adapter and invisible mount adapter
Dimensions Without grille: 165 x 78 / With grill: 183 x 92 mm

Thiele/Small Parameters

S.P.L. [dB] 89 (± 1,5)
