Marine Grade ME-Series 25cm / 10" Subwoofer. (900 W)

A New Wave.

ME-Series Marine Entertainment Combining Pioneer Sound Quality with All-Weather Durability.



Pioneer's ME-series marine subwoofers are protected from the effects of sun and water exposure, meeting both IPX7 & ASTM D4329 to achieve all-weather reliability.



Utilising a Mica reinforced IMPP(TM) monocoque cone and a butyl rubber surround, they are constructed using advanced in-mould bonding techniques, meaning they have superior water resistance whilst maintaining high quality and a powerful sound.



Internally, a symmetrical motor design combined with high strength suspension optimises stability, linearity and clear, low distortion sound reproduction.

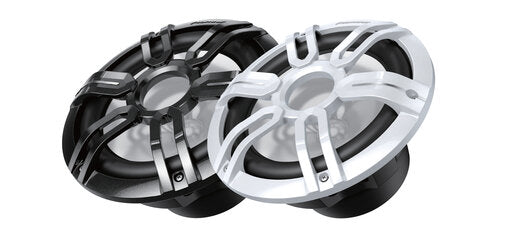

The TS-ME100WS comes with both white and black pearlescent sports grills, so you can match your cabin interior and lifestyle.



If you want to personalise and add an extra touch of colour, Pioneer created the optional UD-ME100LED RGB LED illumination light kit, sold separately, that can illuminate the colour of the woofer to any colour you like.



Pioneer's TS-ME100WC ME-Series speakers are 900 W Max. / 300 Continuous Power Handling (RMS), and are a perfect match with the Pioneer ME-series amplifiers and ME-series speakers.

Specifications

IPX7
IPX7This Pioneer product achieved a rating of IPX7, signifying this product is water resistant and splash resistant at a submerged depth of up to 1 meter for a duration of up to 30 minutes when installed properly.
View all specifications

Full specifications

Main Features

IPX7
Size 25 cm
Type Free-Air
Maximum power 900 W
Continuous power output 300 W
Frequency response 20 Hz to 3.5 kHz
Sensitivity 84 dB (1 W/1 m) dB
Impedance 4 Ω
Mounting Depth 126 mm mm
Woofer Cut-Out Hole Φ225 mm
Woofer material PP
Surround Trex plane
Voice Coil type Copper
Voice Coil bobbin type Polyimide film
Terminals FASTON Type
Magnets Ferrite
25cm / 10"
Speaker Grill
Speaker Grill White or Black included
Weight 2,96 kg
Dimensions Φ273 x 165 mm
Illumination Optional UD-ME100LED. Sold Separately

Other

Reliability Waterproof IPX7, IPX6
UV ASTM D4329
