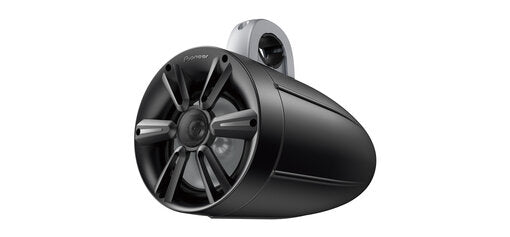

Marine Grade ME-Series 2-Way Coaxial Tower Speaker. (250 W)

A New Wave.

ME-Series Marine Entertainment Combining Pioneer Sound Quality with All-Weather Durability.


Pioneer's ME-series marine speakers are protected from the effects of sun and water exposure, meeting both IPX7 & ASTM D4329 to achieve all-weather reliability. They offer you fantastic sound, high reliability and an attractive design, by Pioneer.


Utilising a Mica reinforced IMPP(TM) monocoque cone and a rubber surround, they are constructed using advanced in-mould bonding techniques, meaning they have superior water resistance whilst maintaining high quality and a powerful sound.


Internally, a symmetrical motor design combined with high strength suspension optimises stability, linearity and clear, low distortion sound reproduction.


For the most natural sound, they also feature a lightweight Dome Type tweeter carefully positioned with a unique shaped wave guide to provide natural, clear vocals with wide dispersion. Great for fantastic sound.


Thanks to Pioneer's original canister design, the TS-ME770TSB also features a Vortex generator. When the boat is traveling at speeds of more than 100 KPH / 54 knots, regular Marine Tower speakers can cause turbulence. Pioneer's Marine Tower speakers have what's called a Vortex generator built into the design itself, reducing unwanted turbulence and increasing the aerodynamics, therefore improving your overall enjoyment factor.


The TS-ME770TSB Tower Marine speaker comes with a matte pearl black sports design, that can integrate seamlessly with flexible mounting options when connected using the UD-ME30CP Mounting Bracket, sold separately.


If you want to personalise and add an extra touch of colour, the TS-ME770TSB included built-in RGB lighting, to illuminate the entire cone area.


Pioneer's TS-ME770TSB Tower Marine speaker is 250 W Max. / 100 W Continuous Power Handling (RMS), contain a 7.7 inch 2-Way speaker and are a perfect match with the Pioneer ME-series amplifiers and ME-series subwoofers.


IPX7This Pioneer product achieved a rating of IPX7, signifying this product is water resistant and splash resistant at a submerged depth of up to 1 meter for a duration of up to 30 minutes when installed properly.
View all specifications

Full specifications

Main Features

Size 7.7 inch / 19.5cm
Type 2-Way Coaxial System
Maximum power 250 W
Continuous power output 100 W
Frequency response 42 Hz to 23 kHz
Sensitivity 90 (1 W/1 m) dB
Impedance 4 Ω
Woofer material IMPP Composite
Surround Rubber
Voice Coil type Copper
Voice Coil bobbin type Film
Magnets Ferrite
Tweeter Type Dome
2-way Coaxial
Speaker Grill
Weight 10 kg
Dimensions Ø 230 x 428 mm
Illumination RGB (Built-in)
Accessories UD-ME30CP, sold separately


Reliability Waterproof IPX7, IPX6
