TS-SW3001S4 - 30cm Shallow-type 4Ω Single Voice Coil Sub (1500W)

€0.00

Pin It

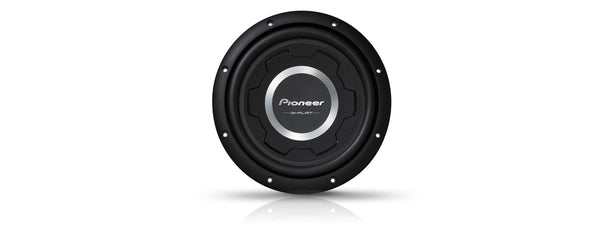

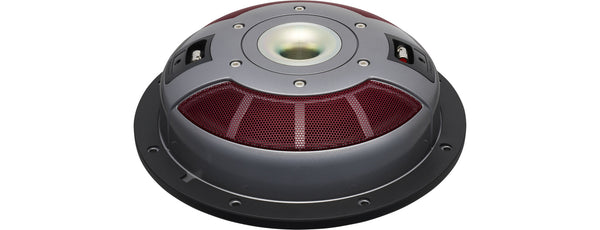

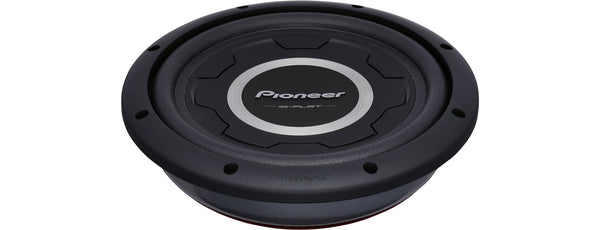

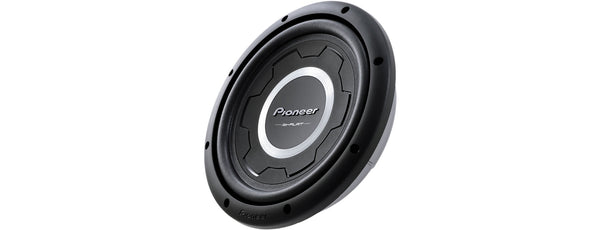

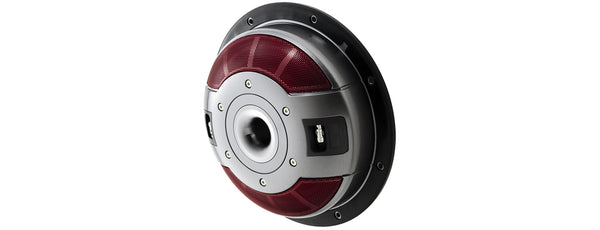

TS-SW3001S4 30cm Shallow-type 4Ω Single Voice Coil Sub (1500W)




A 30cm sub that is just 8.1cm deep.

Now you can boost your car audio with 1500 Watts of pure, solid bass of a superior sub without losing too much space in your car.

Designed for enclosed use, the TS-SW3001S4 combines the interlaced basalt and carbon fibre reinforced IMPP (Injection-Moulded Polypropylene) double cone and our unique
damper-less air suspension excursion control system.

A typical sub uses a damper to control the woofer’s cone excursion. Our air suspension system creates a sealed air space between the double cones, effectively replacing the damper and providing superior compliance linearity - regardless of the volume input - for reproducing exceptionally clear, low distortion bass sound.



 Basalt Blended Cone

Specifications

FeaturesTS-SW3001S4
Maximum input power 1.500 W
Nominal input power 400 W
Frequency response 20 - 230 Hz
Sensitivity (1W/1m) 93 dB
Woofer size 30,0 cm
Woofer material Basalt & Carbon Fiber reinforced IMPP Upper Cone
Recommended sealed enclosure 14,2 - 28,3 litres
Thiele/Small ParametersTS-SW3001S4
Nom. Dia.(In) 12
Qts 0,740
Qms 13,800
Qes 0,780
Fs [Hz] 35,1
Vas [l] 19,90
Vas [ft3] 0,703
Vd [l] 0,287
Vd [ft3] 0,0101388408157394
Sd [m2] 0,0495
Sd [ft2] 0,533
Revc [Ω] 3,0
Levc [mH] (2000Hz) 2,900
Xmax [mm] 5,8
Xmax [in] 0,23
Zmax [Ω] 59,41
BI [Tm] 15,140
Rms[Ns/m] 4,071
Mms [g] 255,35
Cms [m/N] 0,000081
Mg.Wt.[g] 2040
Flux Density [Gauss] 5380
Hag [mm] 10
Hag [In] 0,394
Hvc [mm] 22
Hvc [In] 0,850
VC.Diameter [mm] 65
Eff [%] 0,11
S.P.L. [dB] 93,0
R.M.S.Power [W] 400
M.M.P. [W] 1500
Sp. Displacement [l] 2,81
Sp. Displacement [ft3] 0,099
Recom. Enclosure [l] 18,4
Recom. Enclosure [ft3] 0,65
F0 (in Cabinet) 50,6
Q0 (in Cabinet) 1,068
