• TS-WX010A



Pin It

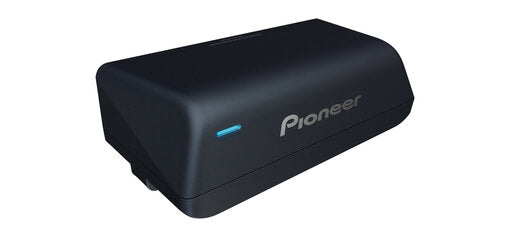

Ultra Compact Space Saving Active Subwoofer with built-in Class-D Amplifier featuring BASS SOUND CREATOR concept for impactful and quality bass. Easy to install at foot space thanks to its trapezium design. (160 W)

Small and powerful!

Pioneer's TS-WX101A is the smallest Active Subwoofer in its Active Subwoofer category. Designed to be installed in the passenger foot space area, TS-WX010A uses a Symbolic Trapezium design that can be easily installed vertically or horizontally.


TS-WX010A gives a new sound experience, thanks to Pioneer's BASS SOUND CREATOR feature that offers impactful and high quality bass sound, a built-in CLASS-D amplifier and a down firing subwoofer for effective reproduction of low frequencies, so you can really feel the bass.


Furthermore, by installing in the passenger foot space area, it can improve the front sound imaging, by creating a natural sound connection with the front speakers, allowing you to experience a new sound experience.


Pioneer’s TS-WX010A delivers 160 W Maximum Power and 50 W RMS Power.


EV Optimized
EV OptimizedThis compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.
CarSoundFit App
CarSoundFit App Car sound simulator application for an improved in-car sound experience
BASS SOUND CREATORDelivering natural and open front staging in the vehicle quickly and easily, by improving the bass sound.
View all specifications

Full specifications

Main Features

EV Optimized
CarSoundFit App
Size 17 cm x 8 cm
Type Enclosed Sealed Active
Maximum power 160 W
Continuous power output 50 W
Frequency response 20 Hz to 200 Hz
Sensitivity 98 (Installed in foot space) dB
Function Phase switch, Frequency control (50 Hz to 125 Hz), Gain control, Input Mode (High/Low)
Weight 1.51 kg
Dimensions 230 mm x 70 mm x 116 mm
Accessories • Main Unit x 1
• Mounting Bracket x 2
• Under carpet installation bracket x 2
• Screws (φ5 mm x 14 mm) x 2
• Screws (M5 mm x 25 mm) x 2
• Power cord assembly (2.5 m) x 1
• Screw cover nut x 2
• Adhesive tape x 4
• Manual
• Warranty document
