• TS-WX1210AH



Pin It

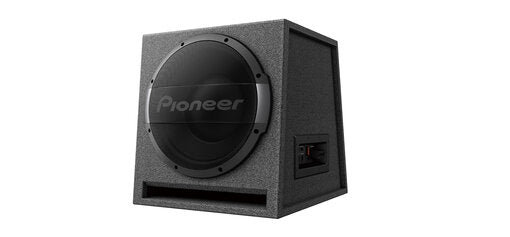

30 cm bass reflex subwoofer with built-in amplifier (1500 W).

Powerful bass and easy to install.

Upgrade your vehicles sound system with this easy to install single driver subwoofer package for strong powerful bass, a maximum power of 1500 W and a nominal power of 500 W. (Remote control and cables included).


The cabinet mechanism and the bass reflex port of the TS-WX1210AH are optimized to take advantage of the low-frequency response of a single driver with a 30 cm woofer unit. Which enable the original bass reproduction of the device and make it possible to enjoy a high-quality and powerful heavy bass reproduction. Equipped with a bass boost circuit, it is possible to adjust the sound pressure level and the frequency characteristics. You can adjust your favorite music to your liking.


CarSoundFit App
CarSoundFit App Car sound simulator application for an improved in-car sound experience
View all specifications

Full specifications

Main Features

CarSoundFit App
Size 30 cm (12")
Type Single powered bass reflex subwoofer system
Maximum power 1500 W
Nom Power 500 Watt
Frequency response 20 Hz - 2.9 kHz
Sensitivity 114 dB (in car, 2V) dB
Impedance 0.6 Ω
Woofer material Pulp
Surround Urethane
Voice Coil type Copper round wire 4-layers single voice coil
Voice Coil bobbin type Kapton
Terminals Faston
30cm / 12" Enclosed Active
LPF 50 Hz - 200 Hz (-12dB / oct)
Weight 12.3 kg
Dimensions 373x459(375)x400 mm
Amplified Subwoofer
