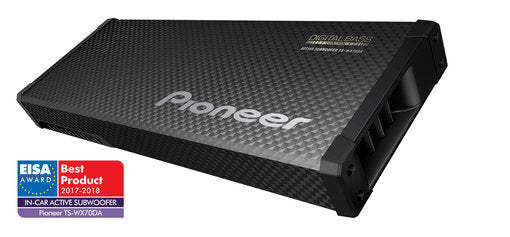

Award winning subwoofer

Space saving Class-D Active Subwoofer integrating DIGITAL BASS CONTROL for DEEP, DYNAMIC controlled bass, and easy installation (200W).

Hearing is Believing

Pioneer launches a new generation Class-D amplified subwoofer integrating DIGITAL BASS CONTROL. This unique feature generates two selectable Bass Modes: DEEP and DYNAMIC, producing 200 Watts of strong, rich, deep bass that you can feel, without giving up your boot space. Users can easily control and customise the two bass modes directly from the supplied wired remote control.


Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX70DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals.





View all specifications

Full specifications

Main Features

Amplified Subwoofer
Space Saving
Impedance 4 Ω
Frequency response • DEEP Bass Mode: 20 - 250 Hz
• DYNAMIC Bass Mode: 40 - 250
Sensitivity • DEEP Bass Mode: 104 dB
• DYNAMIC Bass Mode: 110 dB
Maximum power (100W x 2) 200 W
Nominal input power (50W x 2) 100 W
Built-in variable LPF (50-125 Hz, -12dB/oct.) Yes (variable)
Recommended sealed enclosure (Litres) 13,5 litres
Dimensions 850 x 97 x 323 mm
Magnets strontium
Weight (accerssory parts included) 10,4 kg
Woofer Size 2 x 16 cm
