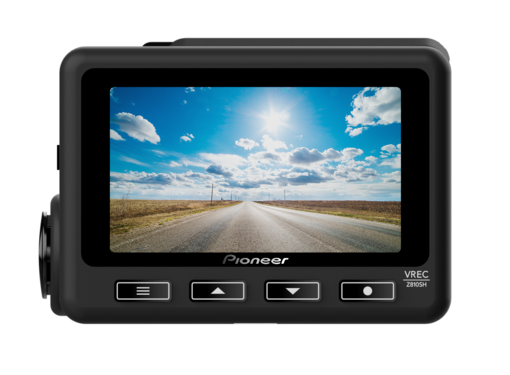

1-Channel (Front) Dash Camera, 4K, 30 fps. 139° Wide Viewing Angle. High Sensitivity utilising a Sony’s CMOS sensor with STARVIS™ technology. Also features GPS, Wi-Fi, Night Time Mode, and 24/7 Security Mode (Hard Wire Kit included in the box).

Your Third Eye On The Road.

Install a Pioneer Dash Camera for peace of mind by protecting you from fraudulent insurance claims by being able to use the recorded footage in the event of an incident, giving you the ability to identify who is at fault quickly and easily. In some countries installing a Dash Camera can even reduce your insurance* premium.


*Country Specific. Please check with your local insurance company.


1-Channel (Front) Dash Camera, 4K High Resolution image, 30 fps. 139° Wide Viewing Angle. High Sensitivity utilising a Sony’s CMOS sensor with STARVIS™ technology. Also features GPS, Wi-Fi, Night Time Mode, and 24/7 Security Mode (Hard Wire Kit included in the box).


VREC-Z810SH enables you to use key features without taking your eyes off the road when driving. Using ADVANCED DRIVER STRIVER SYSTEM, you also receive voice messages when a risk is detected. At a traffic light, when you activate the "STOP & GO" function, you are notified when a vehicle in front of you starts moving. The Voice Comand function of the VREC-Z810SH increases the comfort of driving while protecting you from risks.


You can record a wide range of scenes that are pone to blind spots, such as dangerous driving coming from behind you, or monitoring your vehicle from the front and back**.


**An optional rear camera ND-RC1 is required.


1-Channel Dash Cam
1-Channel Dash CamFront Dash Camera, recording the front.
4KIn addition to installing a CMOS sensor that realises high sensitivity, this product records in 4K (3840 x 2160p) with about 8.3 million pixels of high resolution so you can record clear high-quality characters such as a license plate, in the day or night.
139° Wide Viewing Angle
139° Wide Viewing AngleRecord larger amounts of information with less blind spots, such as a motorcycle passing from the left or right or a pedestrian or bicycle jumping out.
Night Time Mode
Night Time ModeWhen driving on roads or in tunnels, the license plate and surrounding conditions are clearly recorded. By adopting the SONY CMOS sensor "STARVIS ™" this product is suitable for night time driving.
SONY "STARVIS" Sensor (Front and Rear)
SONY "STARVIS" Sensor (Front and Rear)A SONY CMOS sensor "STARVIS™*" is used giving you detailed image and video capture, especially at night.*Front and Rear camera on Pioneer VREC-DZ700DC.
24/7 Security Mode
24/7 Security ModeAdditional to Parking Mode, 24/7 Security Mode* will automatically start to record when an impact is detected, after the Dash Camera internal battery goes empty, allowing you to monitor your vehicle 24/7, 365 days a year. *Security Mode requires a direct connection to the vehicles power supply using Pioneer's Hard Wire Kit.
GPSAccurately record important information such as your current position, vehicle speed, direction of travel and time.
Wi-FiBuilt-in Wi-Fi to connect your smartphone via an exclusive Pioneer Dash Camera app*'. Check recorded videos or set up the Dash Camera on the screen of a compatible iPhone or Android™ smartphone.* Compatible smartphone required. App availability is depending on your country.
Voice Guidance
Voice GuidanceVoice Guidance provides clear verbal instructions to reduce distraction so you can focus on the road ahead.
Voice Recognition
Voice RecognitionPioneer dash camera can be operated by voice control for some functions to help avoid unnecessary distractions whilst driving. (English, French and Russian are supported)
Rear Camera
Rear CameraPioneer offers an optional rear facing camera (ND-RC1). By using a Sony’s CMOS sensor with STARVIS technology, the camera also allows perfect recording at night.
View all specifications

Full specifications

Main Features

1-Channel Dash Cam
139° Wide Viewing Angle
Night Time Mode
SONY "STARVIS" Sensor (Front and Rear)
24/7 Security Mode
24/7 Security Mode Recoding Time 60 sec
Parking Mode Recording Times 60 sec
Parking Surveillance Recording: 24/7 Security Mode 24/7, 365 days per year
Voice Guidance
Voice Recognition
Rear Camera Optional (ND-RC1)
Image Quality Front:
4K (3840 x 2160 p)
2K (2848 x 1600 p)
Full HD (1920 x 1080 p)
Viewing Angle Front Camera: Horizontal 115°, Vertical 60°, Diagonal 139°
F-Value Front Camera: F1.8
Frame Rate (fps) Front Camera: 25 fps/27.5 fps/ 30 fps
Camera Type Front
Screen 3" Full Colour LCD
Smartphone App Pioneer "Dash Camera Connect" app
G Sensor
Sound Recording On / Off
Recording Modes Normal / Event / Photo / Parking
Continuous Recording Time First 30 seconds, last 30 seconds
Event Recording Times First 30 seconds, last 30 seconds
Manual Recording Times First 30 seconds, last 30 seconds
Video Recording Format MOV
H.265: 4K, 2K, Full HD
H.264: Full HD
Still Image Capture
Still Image Format JPEG
Date and Time Setting
Advanced Driver Assistance Systems (ADAS) Lane Departure Warning System (LDWS)
Front Collision Warning System (FCWS)
Stop & Go
Loop Video Recording
Automatically Start Recording
MicroSD Card Capacity 32 GB to 256 GB
MicroSD Card Compatibility MicroSDXC / microSDHC memory card class 10
Battery Type Super capacitor
Power Consumption Approximately 4W (only Front) 6W(Front+Rear)
Power Supply Voltage 12 V / 24 V DC
Power Connection Type Hard wire power cable
Power Cable Length 3.3 m
Operating Temperature -20° to +60°
Dimensions (W x H x D) 93.7 mm x 63 mm x 49.3 mm
Weight 152g (Excluding installation brackets, etc.)
Graphic User Interface (GUI) Languages English / French / German / Spanish / Polish / Russian
Accessories (Sold Separately) Rear Camera (ND-RC1)
What's In The Box Front Camera / Mounting Bracket / Hard Wire Power Cable / Quick Start Guide / Warranty Document / Cleaning Wipe
