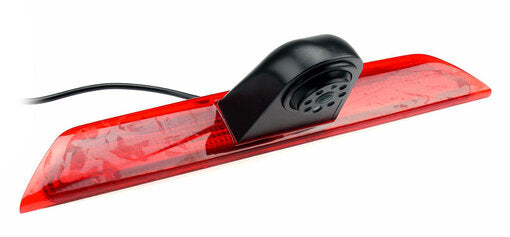

Custom fit camera - For Transit V363 (10m cable)

Custom fit camera.

This camera is built into a direct replacement lens for the third brakelight of your campervan.


It is a plug 'n play solution that eliminates the need to search for a suitable location of your reverse camera.


The camera comes with a 10 meter installation cable included in the box.


For Ford Transit V363 from 2014 to 2017 with original Ford third brake light.


View all specifications

Full specifications

Main Features

Other Image sensor : 1/3” CCD Sensor - 1,7mm lens
Viewing angle : 170°
Light sensitivity : 0 Lux -> LED lights incl.
Video system : PAL / NTSC
Resolution : 976 x 494 (NTSC)
976 x 596 (PAL)
TV Output : 700 lines
Mirrored image : Yes
Connection : RCA
Audio connection : Yes (RCA)
Water/Dust proof : IP68
Power supply : DC12V±10% <1W
Current consumption : 90-135mA @ 13.8V
Operating temperature : -20 to +70℃
Connection cable incl. : Yes, 10m cable
