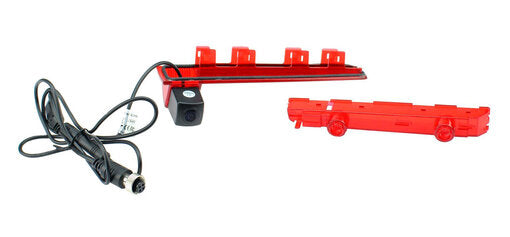

Custom fit camera - For Volkswagen T5 and T6 (10m cable)

Custom fit camera.

This camera is built into a direct replacement lens for the third brakelight of your campervan.


It is a plug 'n play solution that eliminates the need to search for a suitable location of your reverse camera.


The camera comes with a 10 meter installation cable included in the box.


For Volkswagen T5 and T6 from 2010 to 2019 with original Volkswagen barndoor hatch with split third brake light.


View all specifications

Full specifications

Main Features

Other Image sensor : 1/3 " CCD Camera – 1,7mm lens
Viewing angle : 170°
Light sensitivity : 0 Lux -> LED lights incl.
Video system : PAL
TV Output : 650 lines
Resolution : 500(H)*582(V) Pal
Mirrored image : Yes
Connection : RCA
Water/Dust proof : IP68
Power supply : DC12V±10% <1W
Current Consumption : 80mA @ 13.8V
Operating temperature : -20 to +70℃
Connection cable incl. : Yes, 10m cable
