Optional Rear Parking Sensors designed for SPH-10BT and SPH-20DAB.
Park easily and safely.

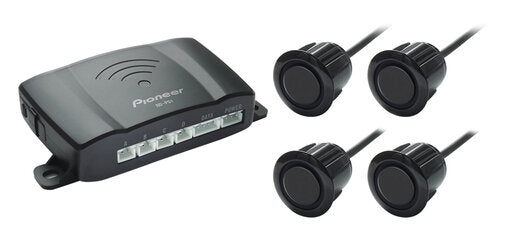

Pioneer's optional rear parking sensors ND-PS1 are easy to install and are designed to be connected directly to Pioneer's SPH-10BT or SPH-20DAB. When connected, you can park easily and safely thanks to the audio and visual illumination warnings on the headunit.
Additionally, when used in conjunction with Pioneer's SPH-10BT, SPH-20DAB and Pioneer Smart Sync app, you can also experience the parking assist display on your compatible smartphone screen.
Specifications
View all specificationsFull specifications
Control box specification
Nominal voltage | 14.4 V DC |
Operating voltage | 10.8 ~ 15.1 V DC |
Rated current | 10 ~ 30 mA at 14.4 V DC |
Detection Range | 0.3 m ~ 2.5 m |
Dimensions (WxHxD) | 105.3 mm x 21.8 mm x 56.0 mm |
Operation temperature range | -30°C ~ 80°C |
Weight | 50 g / 1 pc |
Cable length
Power cable | 1 m |
Connection cable: | 5 m |
Sensor specifications
Center frequency | 40 kHz |
Directivity X-axis | 70° |
Directivity Y-axis | 70° |
Maximum input voltage | 120 Vp-p (at 40 kHz) |
IP code | IP67 |
Dimensions | φ 23.5 mm x 19.8 mm (exclude cable) |
Cable length | 2.5 m |
